RFID Card Access Controller

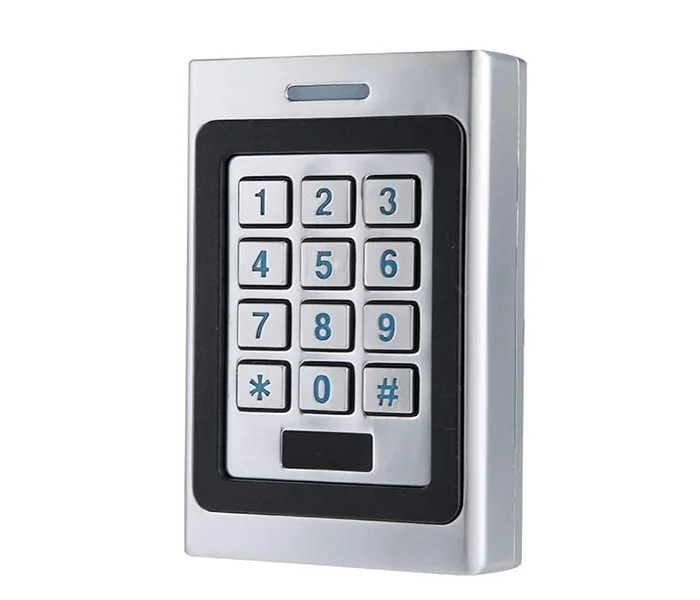

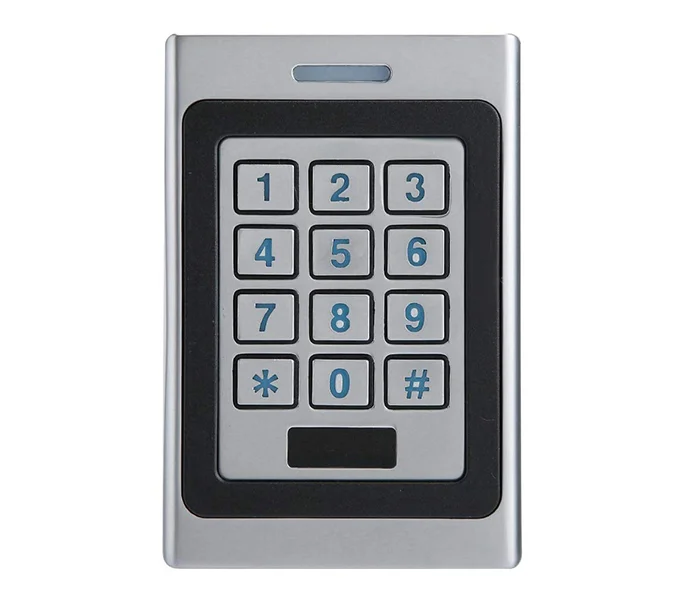

RFID Card Access Controller, A7-RK-EM RFID Access Controller with Keypad ID Card Reader for Door Lock System Wiegand26 – Waterproof IP67

Product description

Functions:

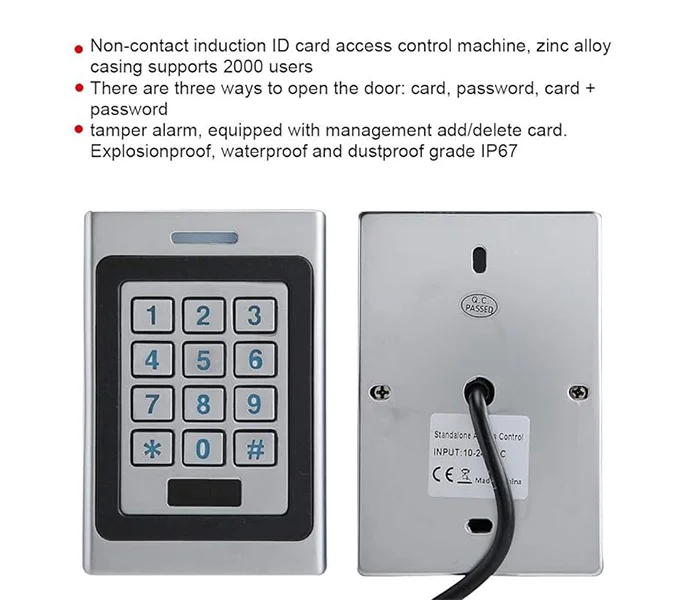

Zinc alloy housing, IP67 rated for outdoor installation. Wide voltage supply DC10-24V, international Wiegand output interface compatible with 26/34 bit.Card type EM ID card (125 kHz). With keyboard input and LED indicator light. User capacity reaches 2000 to meet the needs of users. The operating temperature is -40 to 70 °C and corresponds to the general working environment.

Specification:

  • Condition: brand new
  • Element type: access controller reader.
  • Colour: as pictured.
  • ShownMaterial: Metal

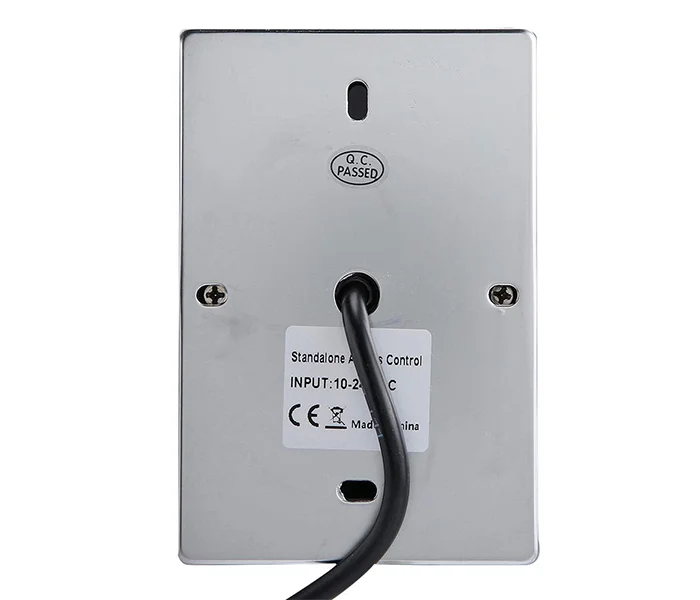

  • Supply voltage: DC10-24V.
  • Working current: ≤ 50 mA.
  • Card reading distance: 4-8cm

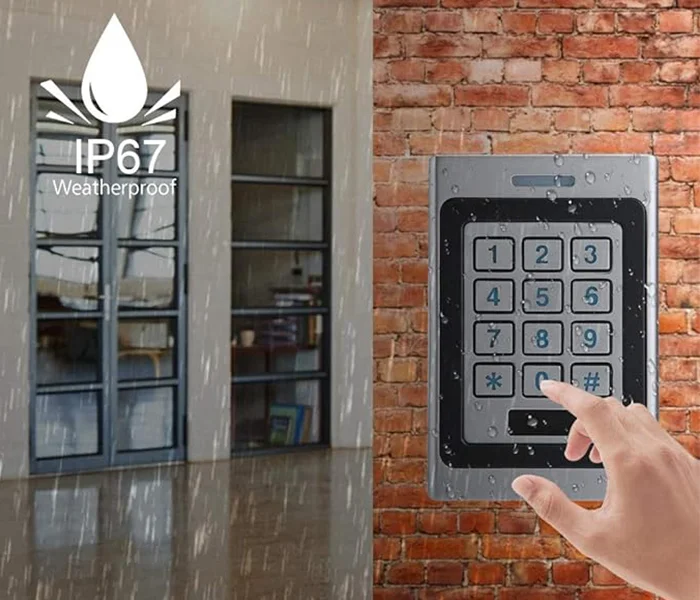

  • Water resistance: IP67.
  • User capacity: 2000.
  • Card Reading Type: ID Card (125K)
  • Weiegand interface: 26 bits/34 bits
  • Operating temperature: -40 – 70 °C.
  • Working humidity: 0% -98% (non-condensing).
