Microwave Barrier

BS-MCB-150
Microwave Barrier

Product Details

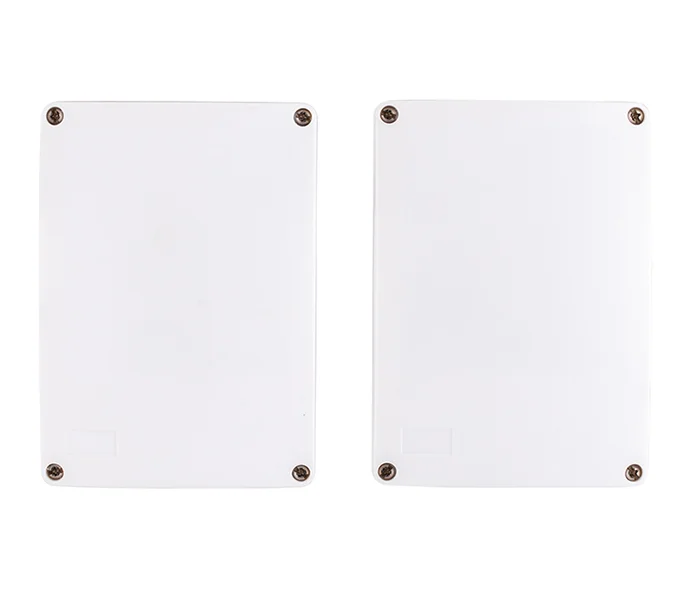

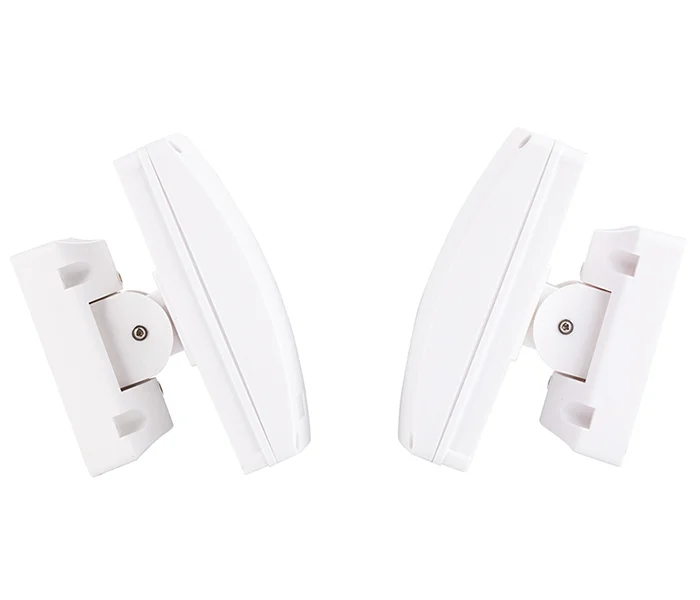

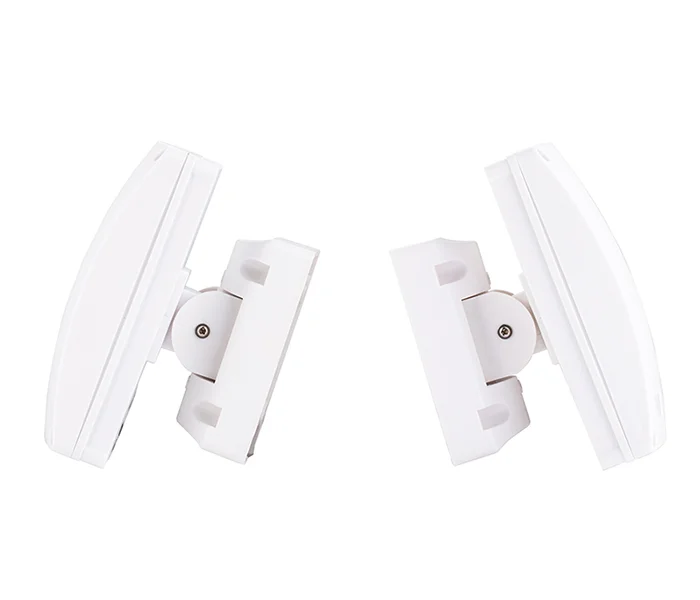

This microwave barrier is used to detect intruder’s walking, running or crawling.

• Maximum Detection Distance: 150m
• Maximum Detection Width: 5m
• Maximum Detection Height: 2.5m
• Working Voltage: 10.2VDC to 30VDC
• Working Current: 70mA at 24VDC
• Working Temperature: -40℃ to +65℃
• Working Humidity: <98%
• Microwave Frequency: 10.525GHZ
• Modulation Frequency: 1.0KHZ
• Maximum Transmitting Power: 35mW(continuous), 50mW(Peak)
• Relay Contact: 28VDC, NC, Maximum current: 0.1A
• Alarm Period: 3 Second (Maximum)
• Detection Speed: 0.2m/second to 10m/second
• High EMI/RFI Immunity
• Recommended Installation Height: 0.8m to 0.9m
• Weight: 1.1KG (including transmitter and receiver)
• Size (L x W x H): 111 x 100 x 155mm (including bracket)
