D1000

• Air inlet nozzle (please align the air nozzle with the air inlet nozzle for air blowing test after installation)
• Power on and off buttons/function buttons
  3.OLED display
• Test result indicator
• Type-C charging port
• Go out of the hole
• Reset key
• Voice prompt sound hole

Units of measurement

*Units commonly used in various countries, when setting the language, the system corresponds to the default unit according to the selected language mg/100mL – China; %BAC – United States; g/L – Europe; mg/L BrAC – Japan *0.05% BAC means 0.05 g (50 mg) of alcohol per 100 ml of blood.

BRIEF INTRODUCTION

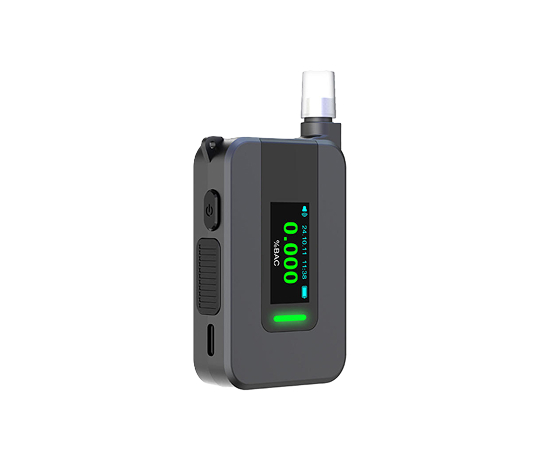

Thank you for choosing the “D1000″fuel cell type exhaled gas alcohol content detector, which is a high-performance civil alcohol detector, strict implementation of the national standards and obtain the inspection certification of the Ministry of Public Security

The product features are described as follows:

• Adopt high precision, high reliability of imported electrochemical sensor;
• Accurate gas path design,high precision sampling system,instrument circuit design and advanced AI algorithm,to ensure the fast,accurate and stable measurement;
• Active blowing detection,convenient for tester to use,small size,easy to carry;
• The company has a complete independent intellectual property rights, set research
• and development, production in one strong guarantee of after-sales service.
• operative norm:
• GB/T21254-2017 National standard of Ex hired breath Alcohol content detector
• GBIT 19522-2010 Blood and Expiatory Alcohol Content Threshold and Test for Vehicle Drivers
• GB 4943.1-2022 Audio and video,Information Technology and Communication technology equipment-Part 1:Security Requirements

ESSENTIAL PARAMETER

• Product name: Portable alcohol detector
• Product model: D1000
• Sensor: Fuel cell type alcohol sensor (electrochemical)
• Blowing time: 5 seconds
• Response time: 1-15 seconds
• Recovery time: Test result>80mg /100 mL, recovery time<20 seconds
• Measuring range: 0~400mg /100 mL; 0～2mg/L; 0～0.4BAC%; 0～4g/L
• Detection accuracy:±6mg /100ml; ±0.03mg/L; ±0.006 BAC%; ±0.06g/L
• Power supply battery: 300 mAh
• Charging mode:Type-C DC5V /1A
• Charging time:1H
• Case material: ABS engineering plastics
• Display screen: 0.960LED color display screen
• Key operation: single key operation
• Operating environment:temperature:-5℃~45℃
• Storage temperature range-20℃~50℃
• Product size: 457016.5 mm
• product weight: 38g
• Packaging list: 1* alcohol detector; 1* TYPE-C USB charging cable; 5 mouth pipe; 1* User Manual
