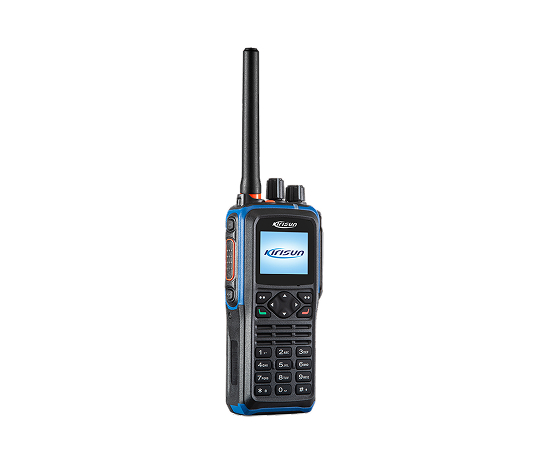

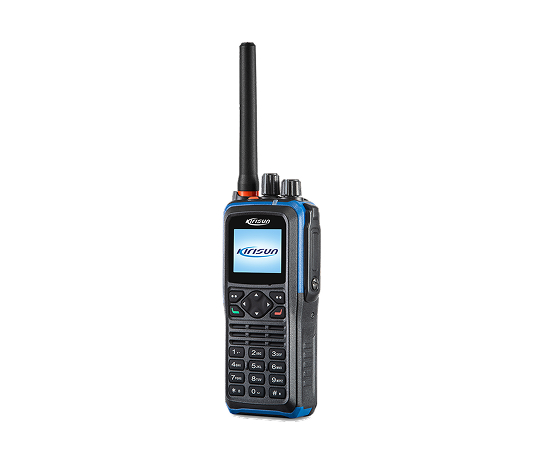

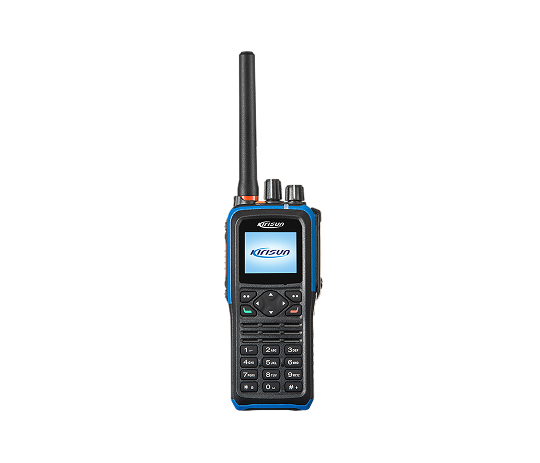

Kirisun DP810 Intrinsically Safe Radio

Purchase

Reliable Intrinsically Safe Communication for Hazardous Environments

The Kirisun DP810 is an intrinsically safe DMR portable radio engineered for reliable communication in hazardous environments. Certified to ATEX and IECEx standards, it combines rugged IP68 protection, AI-based noise cancellation, advanced worker safety features, and multi-mode operation to support critical communication in oil and gas, petrochemical, mining, marine, manufacturing, and utility industries.

Key Features

Reliable and Durable with IP68 protection and compliance with MIL-STD-810 C/D/E/F/G/H for dependable performance in demanding industrial environments.
Intrinsically Safe with ATEX and IECEx certification for safe operation in hazardous environments containing flammable gases and combustible dust.
Enhanced Safety featuring built-in Man Down, Lone Worker, GPS, and a dedicated emergency button for improved worker protection.
High-Capacity and Safe Design Battery(Up to 19 Hours Battery Life) with a 2150 mAh battery and a fully encapsulated battery circuit for reliable operation in high-temperature and high-humidity conditions.
High Quality Audio powered by AI-based noise cancellation technology for clear voice communication in noisy industrial environments.
Multi-Mode Operation supporting analog conventional, digital conventional, MPT trunking, and DMR Tier III trunking for seamless migration and greater system flexibility.
Integrated Bluetooth for wireless accessories and convenient data sharing between compatible devices.
1024 Channels and 248 Zones support large communication networks and multi-site operations.
1.8-inch LCD Display provides clear visibility and easy operation.
High Receiver Sensitivity delivers reliable communication even in challenging environments.

Technical Specifications

Frequency Range: 136 to 174 MHz, 350 to 400 MHz, 400 to 470 MHz
Channel Capacity: 1024
Zone Capacity: 248
Channel Spacing: 12.5 kHz / 20 kHz / 25 kHz
Operating Voltage: 7.5 V DC ±20%
Battery Capacity: 2150 mAh
Dimensions (H × W × D): 157.5 × 56 × 41.4 mm (with standard battery, without antenna)
Weight: 500 g (with standard battery)
LCD Display: 1.8-inch, 5 rows
RF Power Output: 2 W / 1 W
Receiver Sensitivity: Digital: 0.18 μV / BER 5% (Typical)
Operating Temperature: -30°C to +60°C
Storage Temperature: -40°C to +85°C
Dust & Water Protection: IP68
Shock & Vibration: Complies with MIL-STD-810 C/D/E/F/G/H
Salt Fog Resistance: Supported
Anti-Explosion Levels (ATEX):
- Gas: II 2G Ex ib IIC T4
- Dust: II 2D Ex ib IIIC T120°C
Anti-Explosion Levels (IECEx):
- Gas: Ex ib IIC T4
- Dust: Ex ib IIIC T120°C
