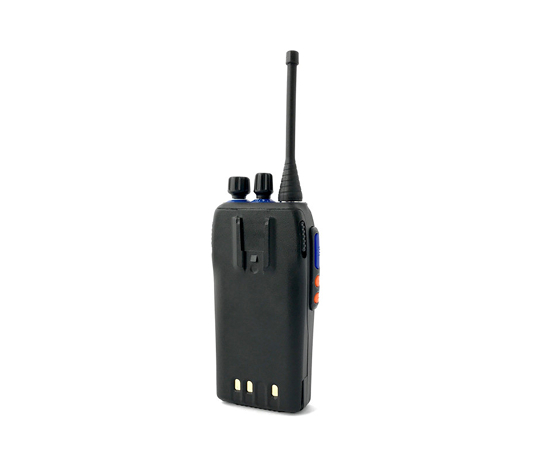

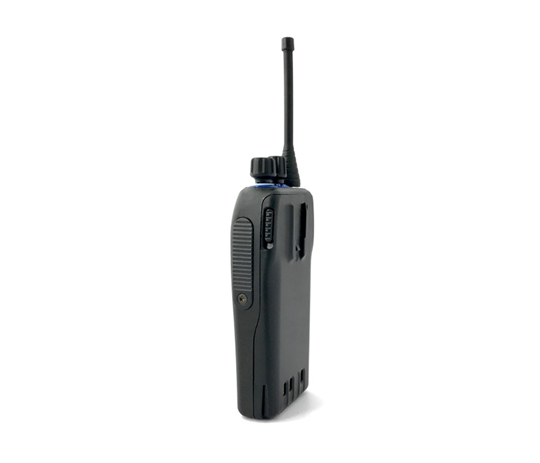

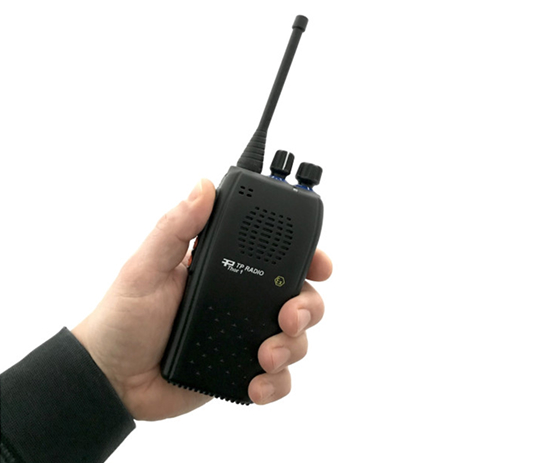

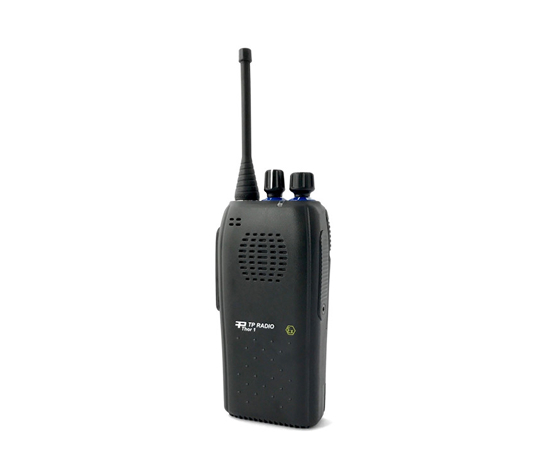

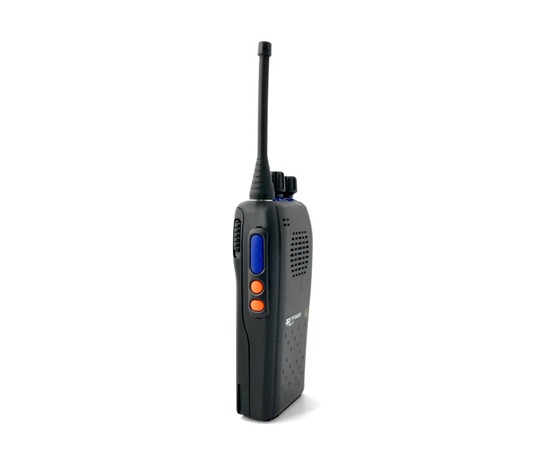

TP9000Ex T4 ATEX Portable Radio

Professional ATEX Portable Radio for Industrial Applications

The TP9000Ex T4 ATEX Portable Radio is an intrinsically safe two-way radio designed for reliable communication in hazardous environments where explosive gases or combustible dust may be present. Certified to ATEX and IECEx standards, it features a rugged IP67-rated design, clear audio, and long battery life for demanding industrial applications. Ideal for oil and gas, petrochemical, marine, mining, manufacturing, and utility sectors, Bharti Technologies supplies, programs, and supports the TP9000Ex across the UAE.

Key Features

• ATEX & IECEx Certified for safe operation in hazardous and explosive environments.
• T4 Hazardous Area Certification suitable for use in designated hazardous locations.
• 2 Watt Transmit Power with programmable output from 0.5 W to 2 W.
• IP67 Rated Construction protects against dust ingress and temporary water immersion.
• MIL-STD-810F Tested for resistance to shock, vibration, and harsh working conditions.
• Up to 16 Hours Battery Life
• Loud and Clear Audio for dependable communication in high-noise industrial environments.
• Compact and Lightweight Design weighing only 310 g including the battery for comfortable daily use.

Standard Package Includes

• TP9000Ex T4 ATEX Portable Radio
• ATEX Certified Rechargeable Battery
• Antenna

Technical Specifications

• Frequency Range: 135 to 174 MHz (VHF) or 406 to 470 MHz (UHF)
• Output Power: Programmable from 0.5 W to 2 W
• Channel Spacing: 12.5 kHz, 20 kHz, 25 kHz
• Mode of Operation: Simplex and Semi-Duplex
• Frequency Stability: ±2 ppm
• Maximum Deviation: ±5 kHz at 25 kHz channel spacing
• Receiver Sensitivity: 0.45 μV
• Signal to Noise Ratio: 40 dB
• Modulation Distortion: Less than 5% at ±3.0 kHz
• Signalling: CCIR, ZVEI, EEA, EIA encoder/decoder, CTCSS, DCS
• Battery Capacity: 3000 mAh Li-Ion
• Battery Operating Time: Up to 16 hours (5% transmit, 5% receive, 90% standby)
• Ingress Protection: IP67
• Military Standard: MIL-STD-810F
• Operating Temperature Range: -20°C to +55°C
• Dimensions: 137 × 64 × 31 mm (including battery)
• Weight: 310 g (including battery)
• Antenna Impedance: 50 ohm
• RF Bandwidth: 64 MHz

Hazardous Area Certifications

Gas Protection

• ATEX: II 2G Ex ib IIC T4 | IECEx: Ex ib IIC T4
• Approved for Zone 1 hazardous gas environments with T4 (135°C) temperature classification.

Dust Protection

• ATEX: II 2D Ex tD A21 IP6X ib D21 T110°C | IECEx: Ex ib IIIC T110°C
• Approved for Zone 21 combustible dust environments.

Mining Protection

• ATEX: I M2 Ex ib I | IECEx: Ex ib I
• Certified for intrinsically safe communication in mining applications.
